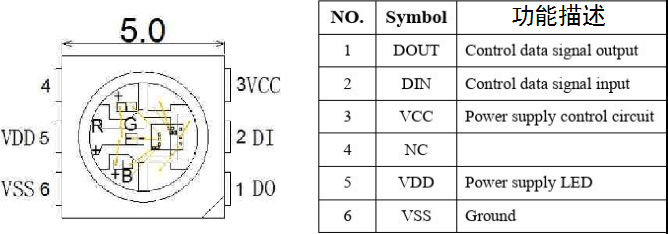

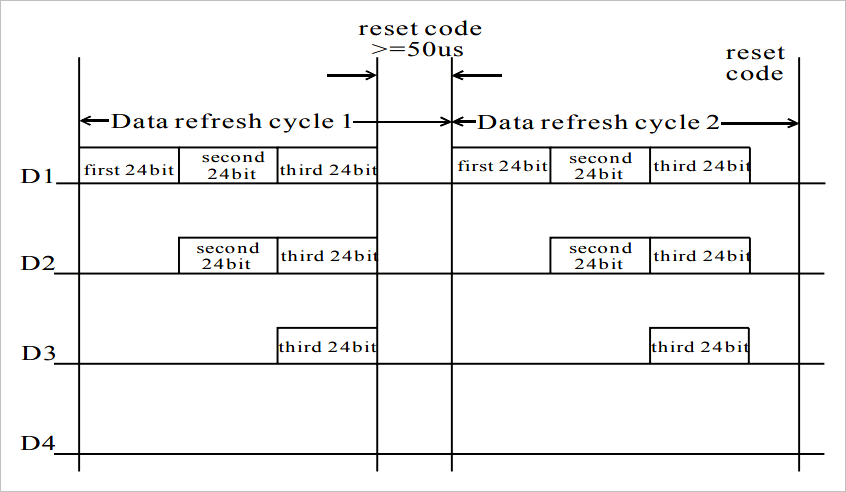

每组24bit对应的的GRB编码如下所示。发送颜色顺序为GRB，字节的高位在前。

e28f51c51fd3f1ce8254810404e4b332 (1).png

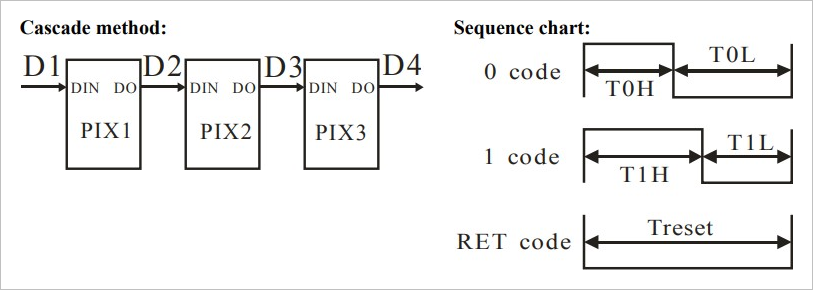

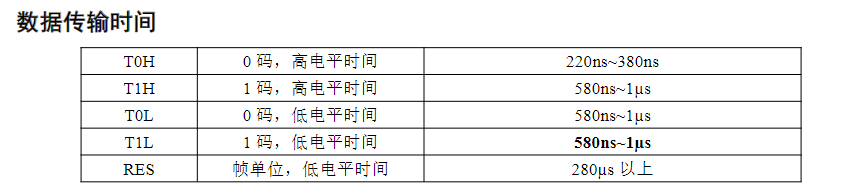

脉冲定义时间误差频率
T0H0 code, high voltage time0.4μs±150ns2.5MHZ
T1H1 code, high voltage time0.85μs±150ns1.18MHZ
T0L0 code, low voltage time0.85μs±150ns1.18MHZ
T1L1 code, low voltage time0.4μs±150ns2.5MHZ
RESReset low voltage time≥50μs—
